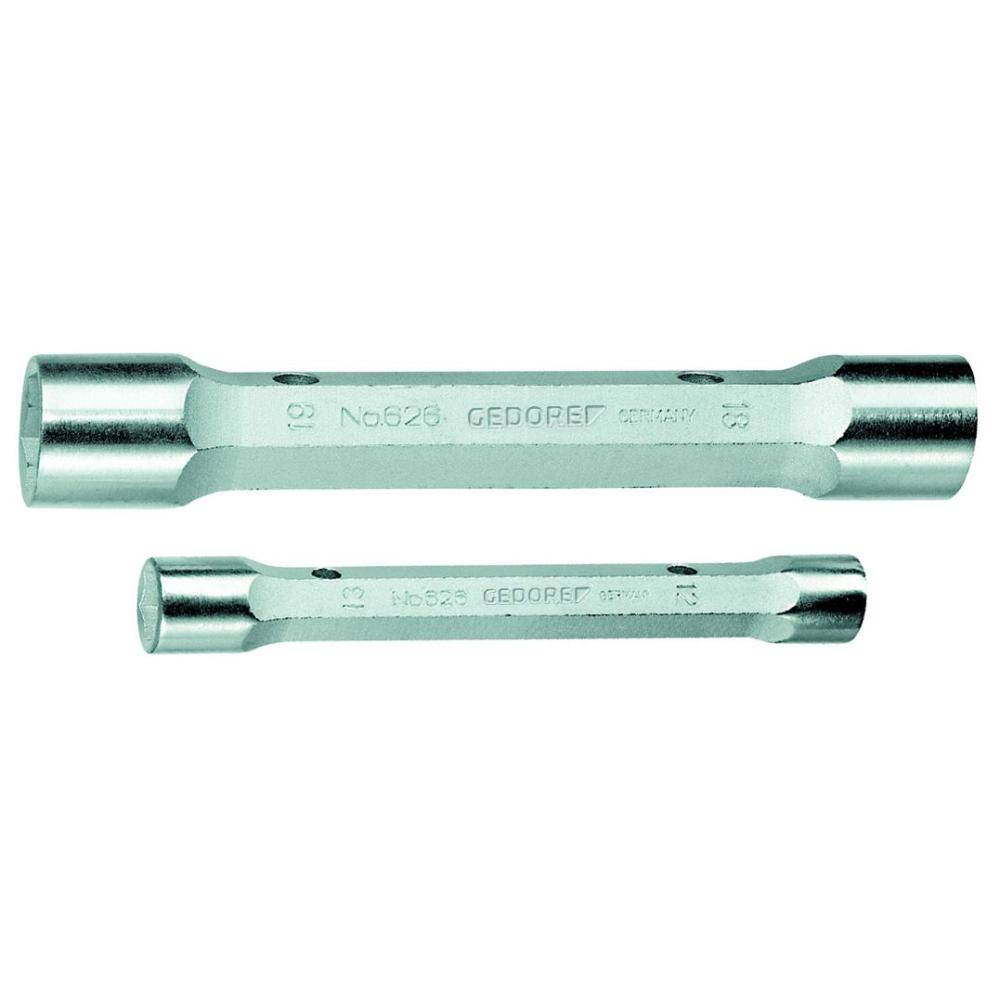

Gedore Tubular box spanner 18x19 mm 6526440
Similar to DIN 896, Form A, ISO 2236, ISO 1085 • With hexagon shaft and holes for turning, either with a spanner or a tommy bar (626 S / 26 RS-626 S, see table, please order separately) • Sizes 6x7 and 8x9 mm with no hole • GEDORE vanadium steel 31CrV3, chrome-plated
Specifications
Length (L, L1):- 165 mm
Diameter 1:- 24,5 mm
Diameter 2:- 26,0 mm
Depth of Head (a1, t):- 15,0 mm
Depth of Head (a2, t2, Dt):- 17,5 mm
Width Across Flat / Actuating Hexagon:- 18 mm
Width Across Flat 2:- 18 x 19 mm
Packing Unit:- 5 Piece
Weight:- 0.242 kg
Tommy Bar 26 RS:- 626 S 2
