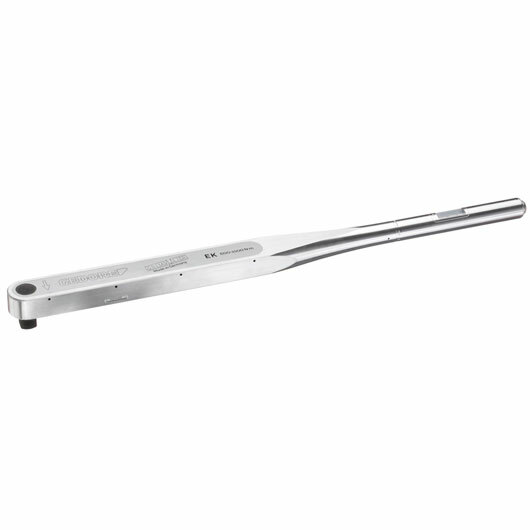

Gedore Torque wrench DREMOMETER E in a sheet-metal case 7695680
Use: • Controlled screw tightening in the range 750-2000 N·m • For use in almost all industrial manufacturing areas Features: • Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded. • 1" square drive with pin-locking mechanism DIN 3120 - B25, ISO 1174 • Automatic short-path actuation with tactile impulse and audible signal • Single scale with a scale graduation of 50 N·m Technical advantage/Function: • Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly • No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. • Extremely low wear attributable to reduced forces in a unique lever mechanism • Forged lever chain from our own quality forge • Maximum precision even when subjected to extreme continuous use • Long life cycles and tool lives • Easy operation - fast and safe torque tightening • Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle • Single- and double-square drive for controlled bi-directional tightening
- Drive Type: s E
- Drive connector square (male): 1
- Drive connector square (male) nominal size: 25
- Range of work / measurement N.m (min/max): 750-2000
- Distance middle of handgrip to pivot point: 2213
- Height: 40
- Distance housing - square drive: 30,0
- Length (L, L1): 932
- Length torque wrench with tube: 2353
- Length extension tube: 925
- Length extension tube 2: 745
- Extension tube Y/N: 8564-92 / 8572-74
- Scale divisions: 50 N·m
- Weight: 21,2
