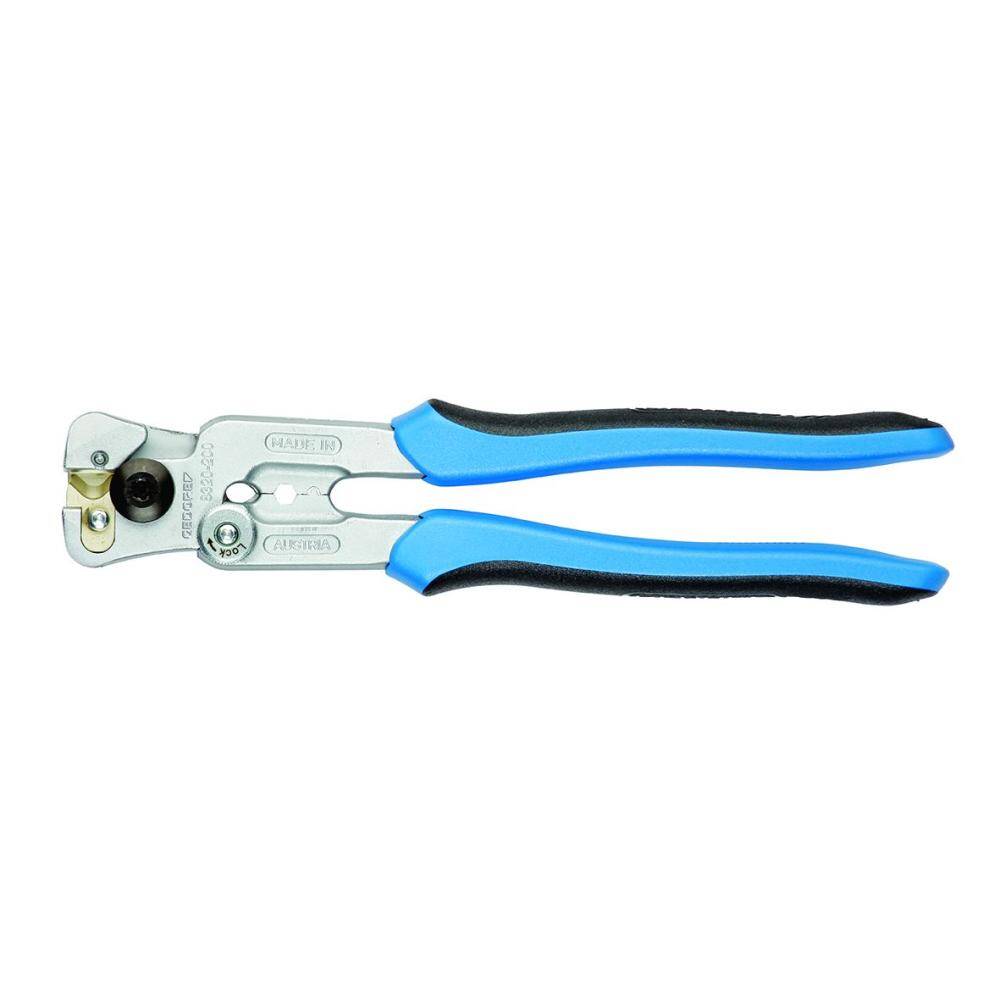

Gedore Wire rope cutter 200 mm 2788799
Execution: • Easy-to-change cutting plates • Cutting plates of powder metallurgical high-speed steel (HSS). Manufactured in the MIM process (Metal Injection Molding) • Extremely high durability compared to traditional wire rope cutters • Extremely soft shearing cut reliably prevents the wire rope from fanning out • Tip: Can be operated with one hand of an average size up to a 5 mm Ø. Therefore optimally suited as shears in an emergency at sea. Jaws/Cutting edges: • Specially arched cutting edges • Easy to replace cutting plates if worn • Hardness 62 - 65 HRC • Low force needed due to the optimum cutting-edge geometry • Two integrated press profiles for Bowden cable terminal sleeves and cable end sleeves Cutting performance: • Wire ropes up to 1800 N/mm2 with max. 6 mm Ø (e.g. stainless steel wire ropes, wire ropes with steel and textile cores, Bowden cables, shears) • Wire up to 750 N/mm2 with max. 4 mm Ø (e.g. nails/wire nails, screws, bolts, ceiling banners) • Single- and multi-core copper and aluminium cables with max. 6 mm Ø Joint: • Adjustable joint for precise cutting plate guidance • Latch to prevent unwanted opening Handles: • JC = with 2-component handles Material/Finish: • Plier body hot drop-forged • Chrome-plated
- Length (L, L1):- 200 mm
- Packing Unit:- 1 Piece
- Weight:- 0.48 kg
