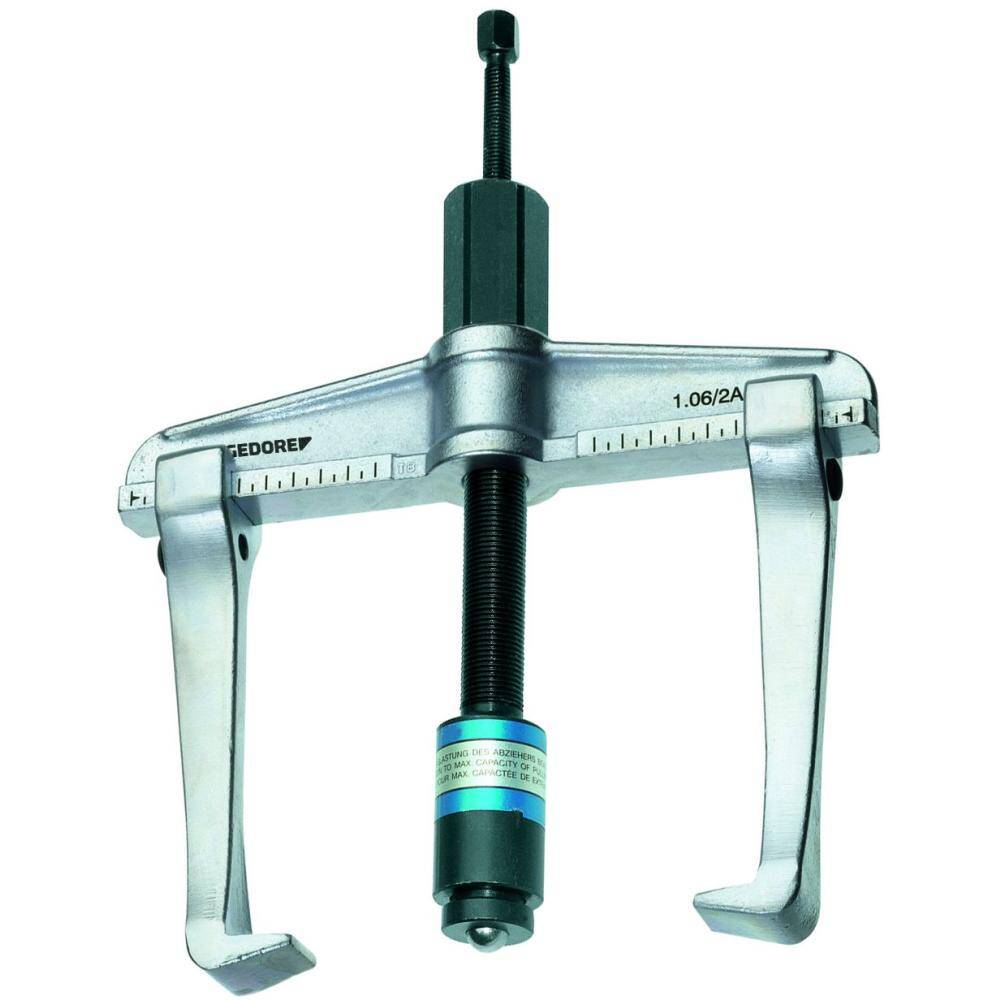

• Strong drop forged pattern • Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required • Rigid legs forged from one piece • Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button • By reversing the legs, this tool can be used as an internal or external puller • With the hydraulic spindle, a controlled and safe pulling action is possible at all times • The pressure piece can be replaced by a tip and lengthened, as required. • The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal. • Also available with standard spindle - Model 1.06/B
Specifications:
Clamping spread -max- external pulling (a, a1): 170 mm, Clamping spread -min- internal pulling (a2): 220 mm, Clamping reach: 75 mm
Hydraulic spindle: 1.06/HSP1
Width of hooked foot (c): 30 mm Depth of hooked foot (d): 24 mm Thickness of hooked foot at tip (e): 3,5 mm
Loading (in tons, max.): 5,0 t Loading (in Nm, max.): 9 Nm
Weight: 3,3 kg
