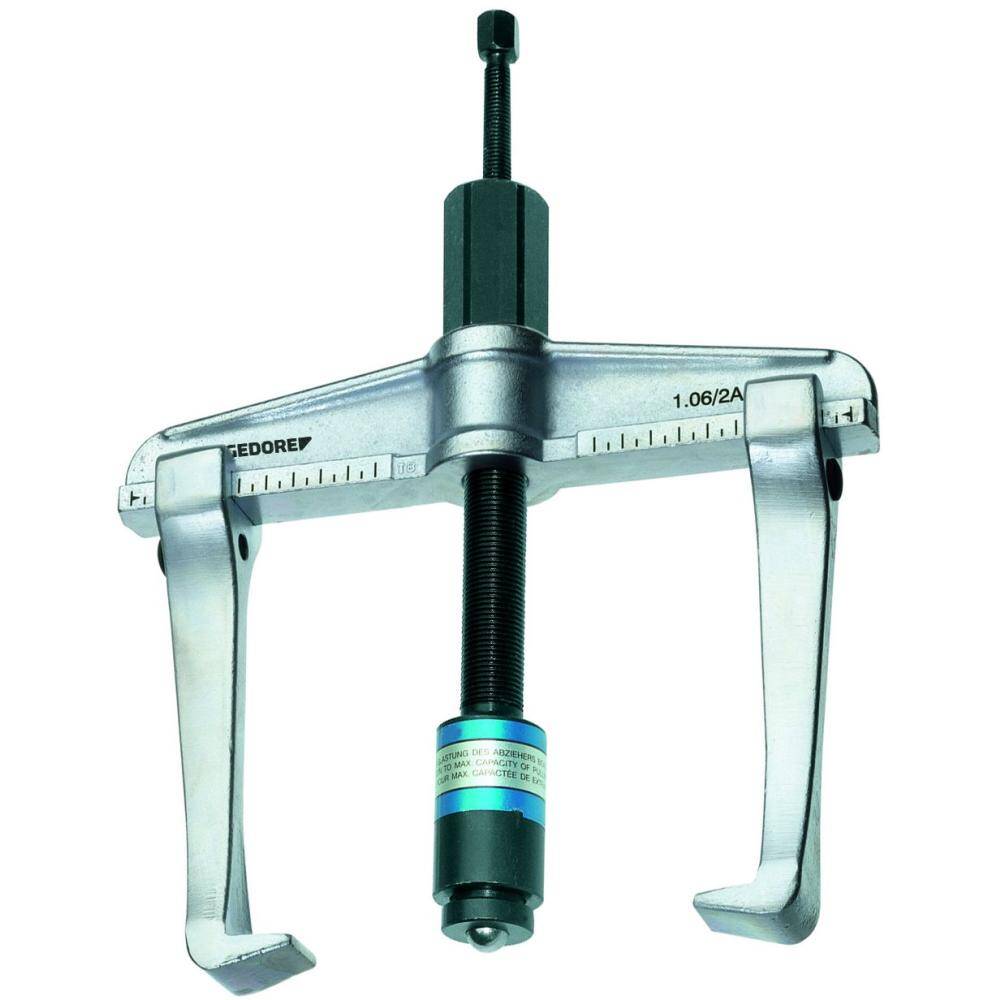

• Strong drop forged pattern • Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required • Rigid legs forged from one piece • Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button • By reversing the legs, this tool can be used as an internal or external puller • With the hydraulic spindle, a controlled and safe pulling action is possible at all times • The pressure piece can be replaced by a tip and lengthened, as required. • The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal. • Also available with standard spindle - Model 1.06/B
Specifications:
Clamping Spread – max – External Pulling (a, a1):- 250 mm, Clamping Spread – Min – Internal Pulling (a2):- 340 mm
Width of Hooked Foot :- 36 mm, Depth of Hooked Foot (d):- 32 mm. Thickness of Hooked Foot at tip:- 5,0mm
Loading Max T:- 7,5 t
Scale Divisions:- x
Packing Unit:- 1 Piece
Hydraulic Spindle:- 1.06/HSP2
Loading Max Nm:- 13 N·m
Weight:- 7.2 kg
Clamping Reach:- 120 mm
