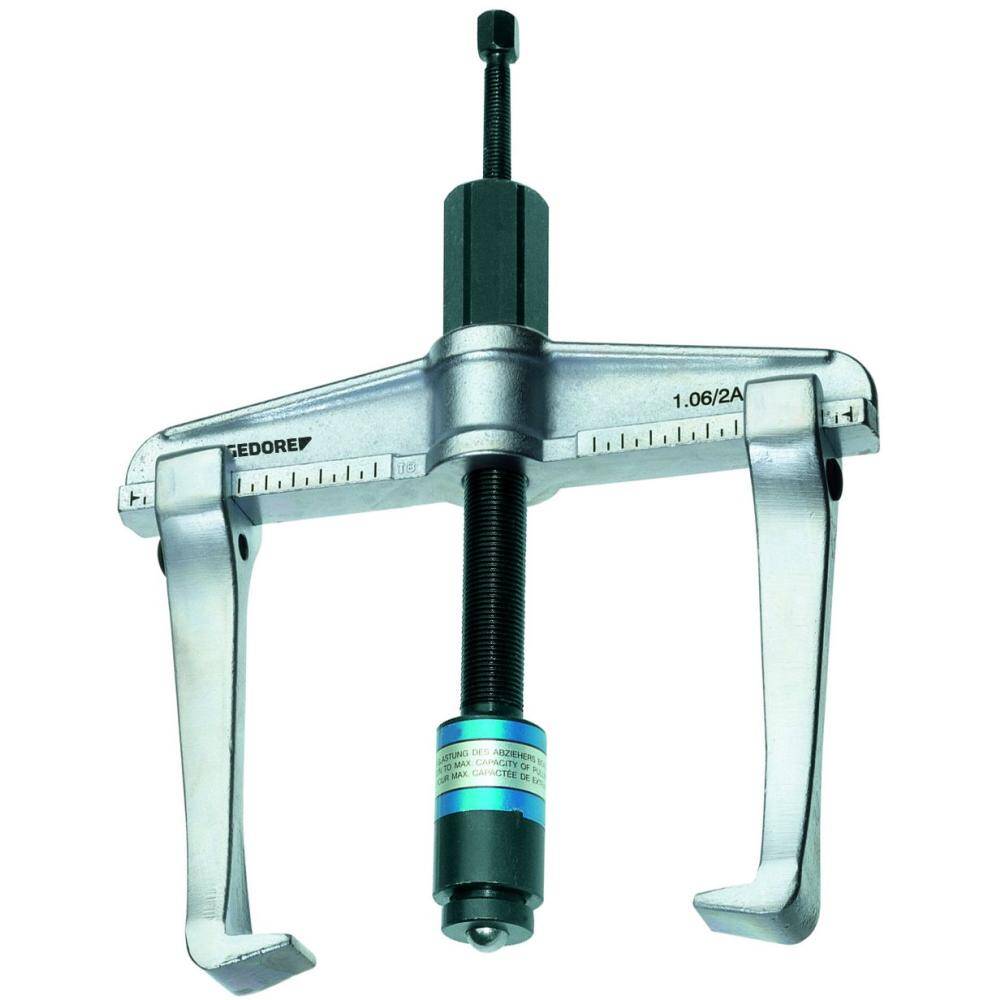

Strong drop forged pattern. Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required. Rigid legs forged from one piece. Leg brake – prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button. By reversing the legs, this tool can be used as an internal or external puller. With the hydraulic spindle, a controlled and safe pulling action is possible at all times. The pressure piece can be replaced by a tip and lengthened, as required. The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal. Also available with standard spindle – Model 1.06/B.
Technical Specifications:
Clamping Spread – max – External Pulling (a, a1):- 520 mm, Clamping Spread – Min – Internal Pulling (a2):- 610 mm
Width of Hooked Foot :- 36 mm, Depth of Hooked Foot (d):- 32 mm, Thickness of Hooked Foot at tip:- 5,0mm
Loading Max T:- 10,0 t
Scale Divisions:- –
Packing Unit:- 1 Piece
Hydraulic Spindle:- 1.06/HSP3
Loading Max Nm:- 25 N·m
Weight:- 14 kg
Clamping Reach:- 75 mm
