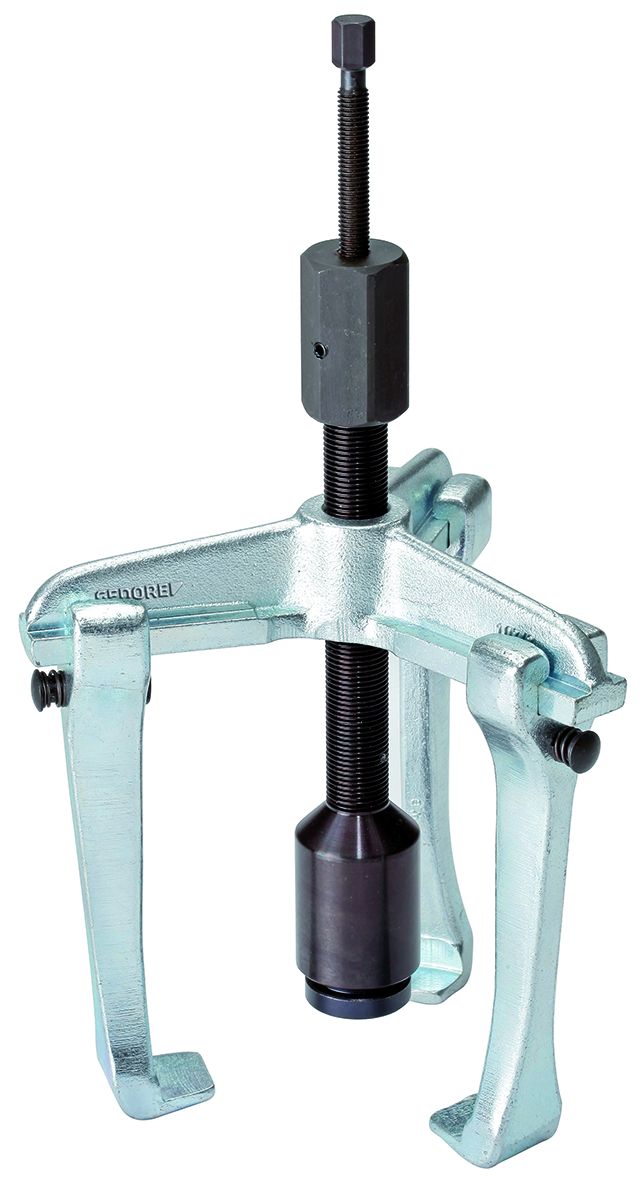

Even load distribution over 3 legs ensures secure grip and balanced pull. Rigid legs forged from one piece. Leg brake – prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button. By reversing the legs, this tool can be used as an internal or external puller. Extra or replacement legs increase versatility. The pressure piece can be replaced by a tip and lengthened, as required. The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal. Also available with standard spindle – Model 1.07/B.
Specifications of this product:
Clamping Spread – max – External Pulling (a, a1):- 160 mm, Clamping Spread – Min – Internal Pulling (a2):- 140 mm, Clamping Spread – Max – Internal Pulling (a2):- 220 mm
Width of Hooked Foot :- 30 mm, Depth of Hooked Foot (d):- 24 mm, Thickness of Hooked Foot at tip:- 3,5mm
Loading Max T:- 5,0 t, Packing Unit:- 1 Piece
Hydraulic Spindle:- 1.06/HSP1
Loading Max Nm:- 9 N·m
Weight:- 4.1 kg
Clamping Reach:- 70 mm, Clamping Spread – Min – External Pulling (a1):- 20 mm
