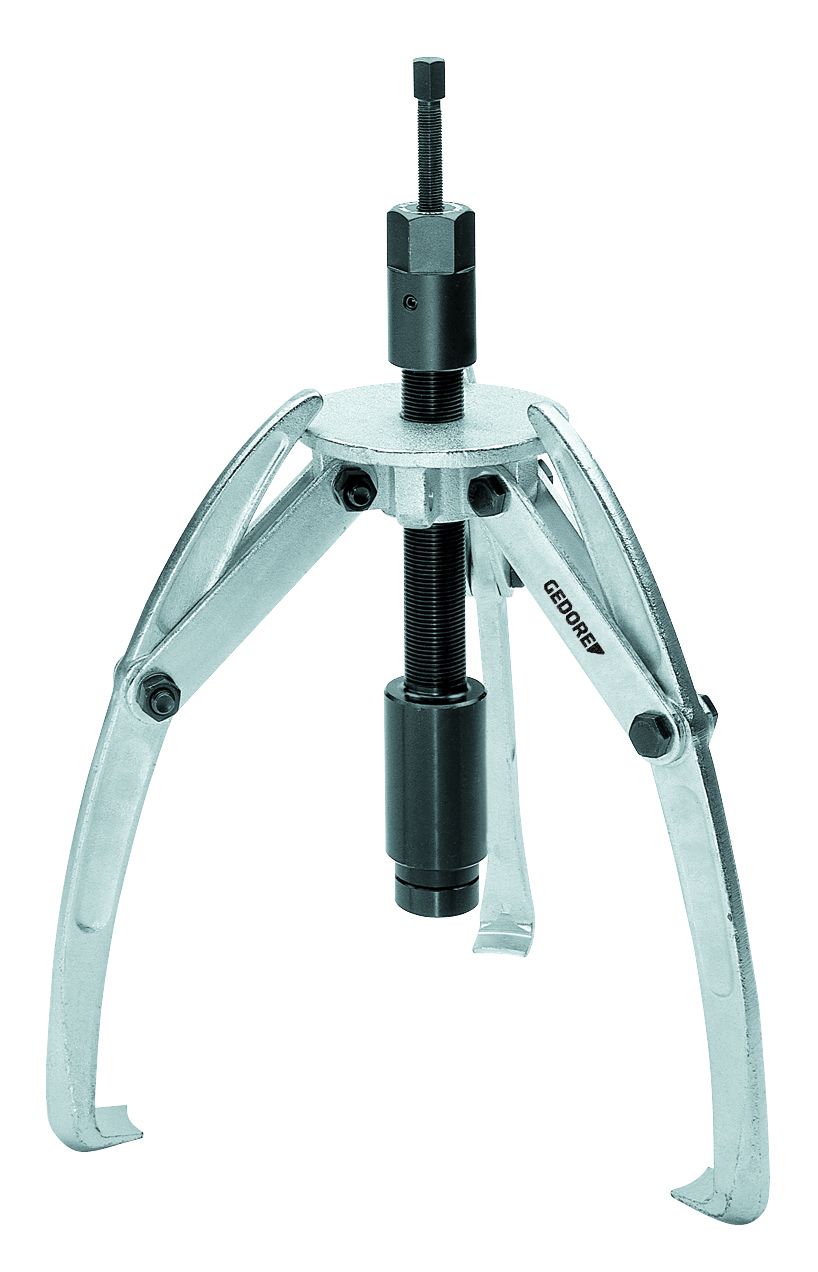

Very strong. Made for industrial applications and for use on heavy agricultural and construction machines. The legs grip automatically. With the hydraulic spindle, a controlled and safe pulling action is possible at all times. Also available with standard spindle – Model 1.17.
Specifications of this product:
Width Across Flat / Actuating Hexagon:- 41 mm
Clamping Spread – max – External Pulling (a, a1):- 300 mm
Width of Hooked Foot :- 32 mm, Depth of Hooked Foot (d):- 19 mm, Thickness of Hooked Foot at tip:- 3,0mm
Loading Max T:- 12,0 t
Packing Unit:- 1 Piece
Hydraulic Spindle:- 1.06/HSP3
Loading Max Nm:- 29 N·m
Weight:- 11.4 kg
Clamping Reach:- 190 mm
