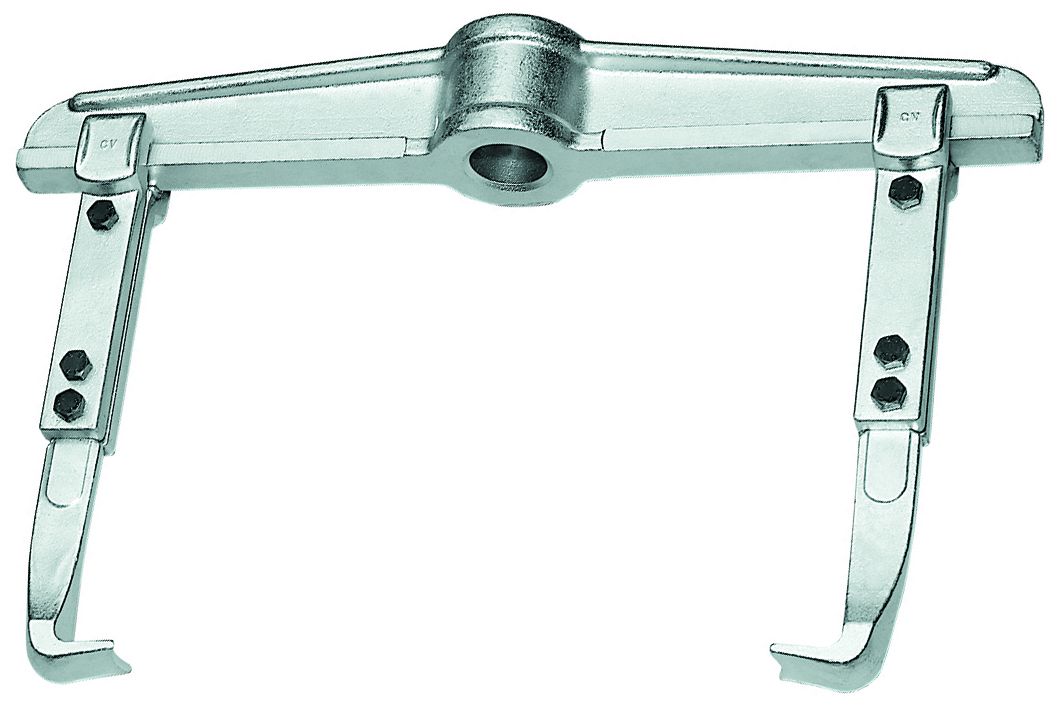

For the fast and damage-free removal of pulleys, wheels, ball bearings, etc. Robust pattern, designed for rigidity and heavy duty use. By reversing the legs, this tool can be used as an internal or external puller. The reach may be increased both by using pulling legs in special lengths, and by using extensions.
Specifications of this product:
Clamping Spread – max – External Pulling (a, a1):- 520 mm, Clamping Spread – Min – Internal Pulling (a2):- 185 mm, Clamping Spread – Max – Internal Pulling (a2):- 600 mm
Width of Hooked Foot :- 36 mm, Depth of Hooked Foot (d):- 28 mm, Thickness of Hooked Foot at tip:- 6,5mm
Loading Max T:- 10,0 t
Packing Unit:- 1 Piece
Weight:- 11 kg
Clamping Reach:- 200 mm
