The ultimate hardworker with spline
Unbeatable combination of power and ergonomics
Extremely low lateral vibrations for best comfort and safety
Excellent durability
The reference tool for the most demanding applications in Energy and Metal working segments

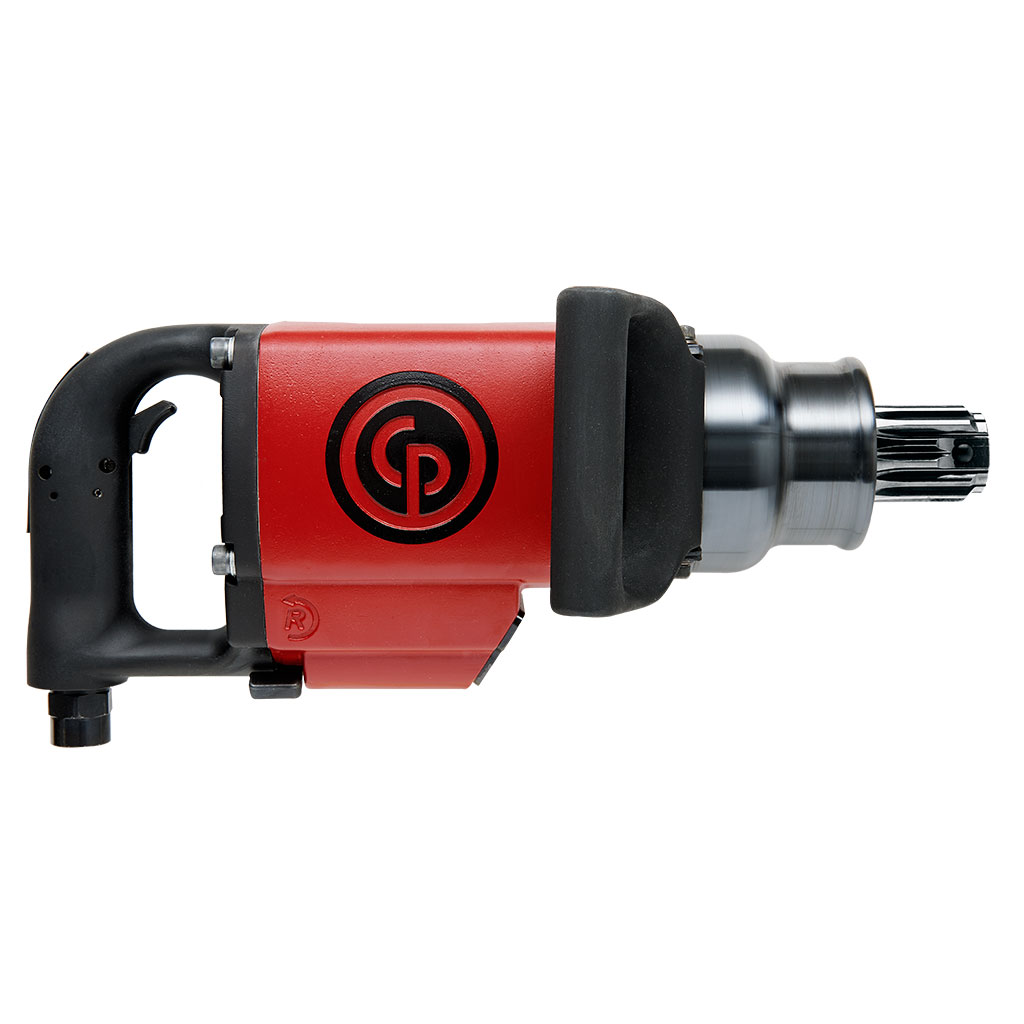

Premium Industrial spline #5 impact wrench
CP:s 2-Jaw clutch for superior ergonomics and productivity
Very robust steel clutch housing and aluminum motor housing
Extremely comfortable handle and adjustable support handle
Possibility to change inside/outside trigger, parts included in the box
Reverse biased 15%, possiblity to change to forward biased by turning around the air motor cylinder
HandleType : D-Handle Inside Trigger
SquareDrive_in : #5 spline
WorkingTorqueRangeFwd_Nm : 815-2,710
WorkingTorqueRangeFwd_ftlbs : 600-2,000
MaxTorqueRev_Nm : 4880
MaxTorqueRev_ftlbs : 3600
FreeSpeed_rpm : 3500
BlowPerMinute : 960
Weight_lb : 34.5
Weight_kg : 15.65
Length_in : 16.5
Length_mm : 420
ActualAirConsumption_cfm : 60
ActualAirConsumption_ls : 28.3
AirInletThreadSize_nptfin : 0.5
NoiseLevelISO15744_dba : 97
SoundPowerISO15744_dba : 108
Vibration_ISO_28927_2_ms2 : 21.8
Vibration_K_ISO_28927_2_ms2 : 11.8
SocketRetainer : #5 spline
ClutchType : 2-jaw
