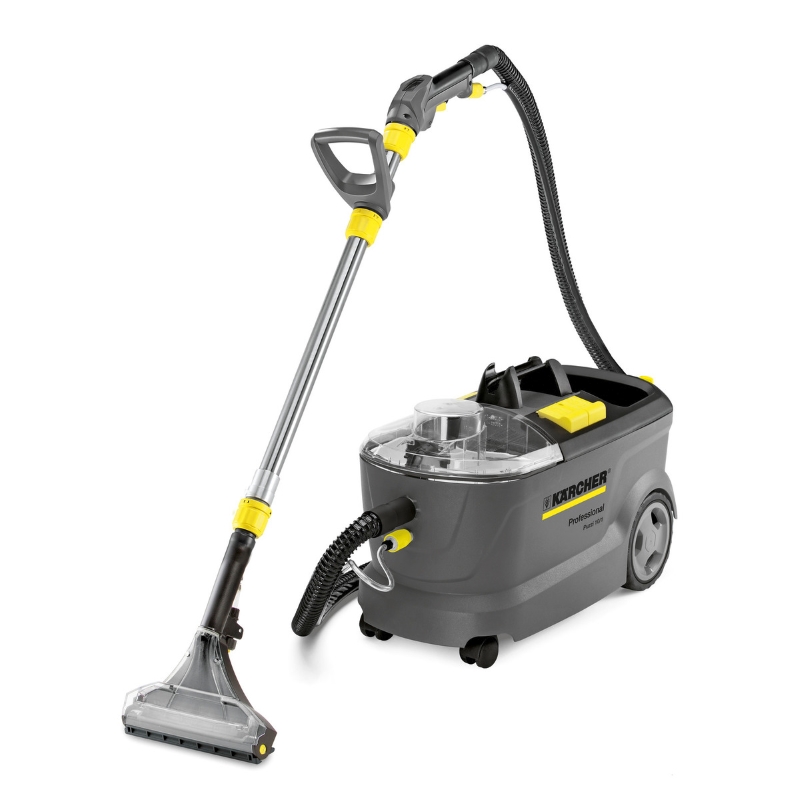

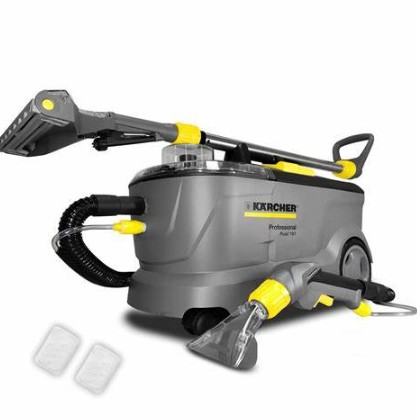

The Puzzi 10/1 spray-extraction cleaner provides new levels of convenience and ease of use, thanks to a host of design features all intended to make carpet and upholstery cleaning more productive and therefore quicker and at lower cost. Using the proven spray-extraction method, the Puzzi 10/1 deep cleans carpets and leaves only minimal residual moisture.
This means that carpets and upholstery are left almost completely dry, reducing the risk of resoiling and enabling cleaned areas to be used again quickly. Kärcher’s revolutionary flexible suction tool features a rotating plastic lip which ensures optimum contact is made regardless of the angle of the floor tool, dramatically improving ease of use and cleaning results.
SPECIFICATIONS
Technical data
| Max. Area Performance (m²/h) | 20 - 25 |
| Air flow (l/s) | 74 |
| Vacuum (mbar/kPa) | 220 / 22 |
| Spray rate (l/min) | 1 |
| Spray pressure (bar) | 1 |
| Tank of fresh/dirty water (l) | 10 / 9 |
| Power rating fan (W) | 1250 |
| Power rating, pump (W) | 40 |
| Current type (V) | 230 - 240 |
| Weight without accessories (kg) | 10.7 |
| Weight incl. packaging (kg) | 16.1 |
| Dimensions (L × W × H) (mm) | 705 x 320 x 435 |

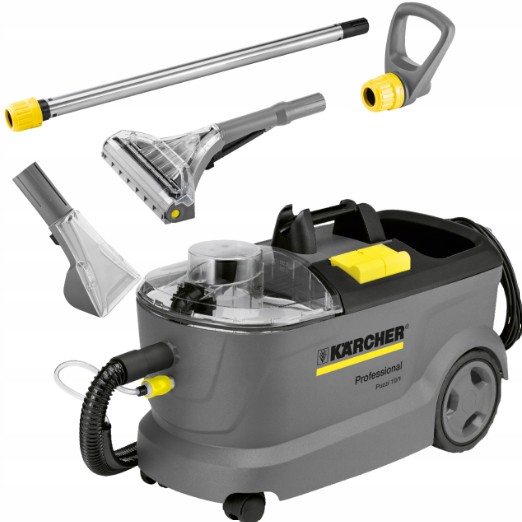

Scope of supply
- Detergent: RM 760 Tabs, 2 Piece(s)
- Spray suction hose: 2.5 m

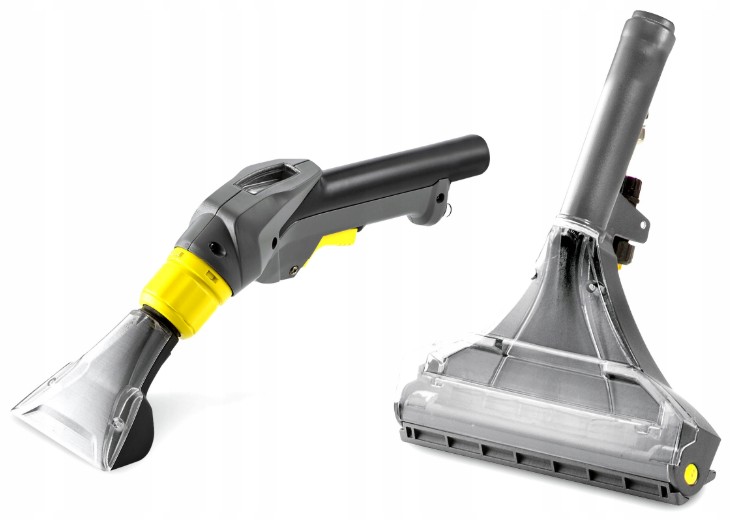

- Floor tool: 240 mm

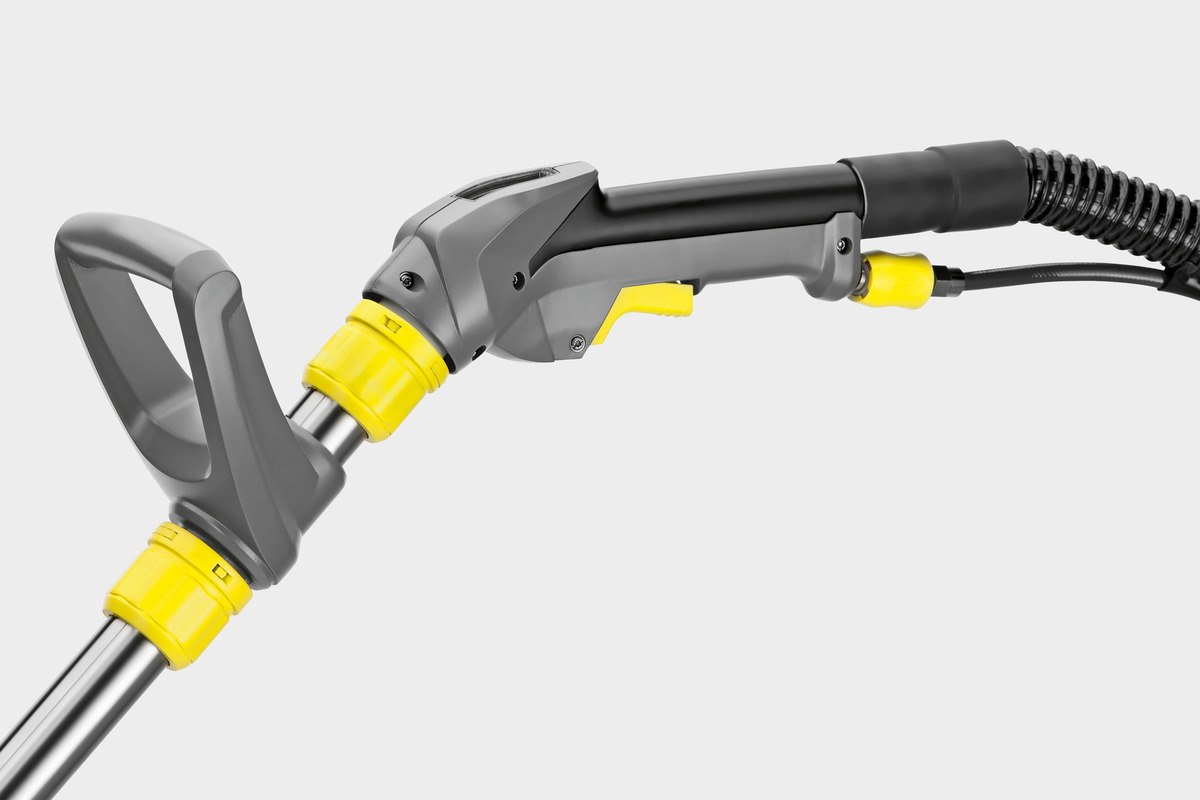

- Spray/suction gun
- D-handle for spray/suction tube
- Removable 2-in-1 container
- Spray extraction tube: 1 Piece(s)
Equipment
- Integrated accessory storage for upholstery/crevice nozzle
- Integrated accessory storage for floor nozzle
- Nozzle mouthpiece: Upholstery nozzle, blue
