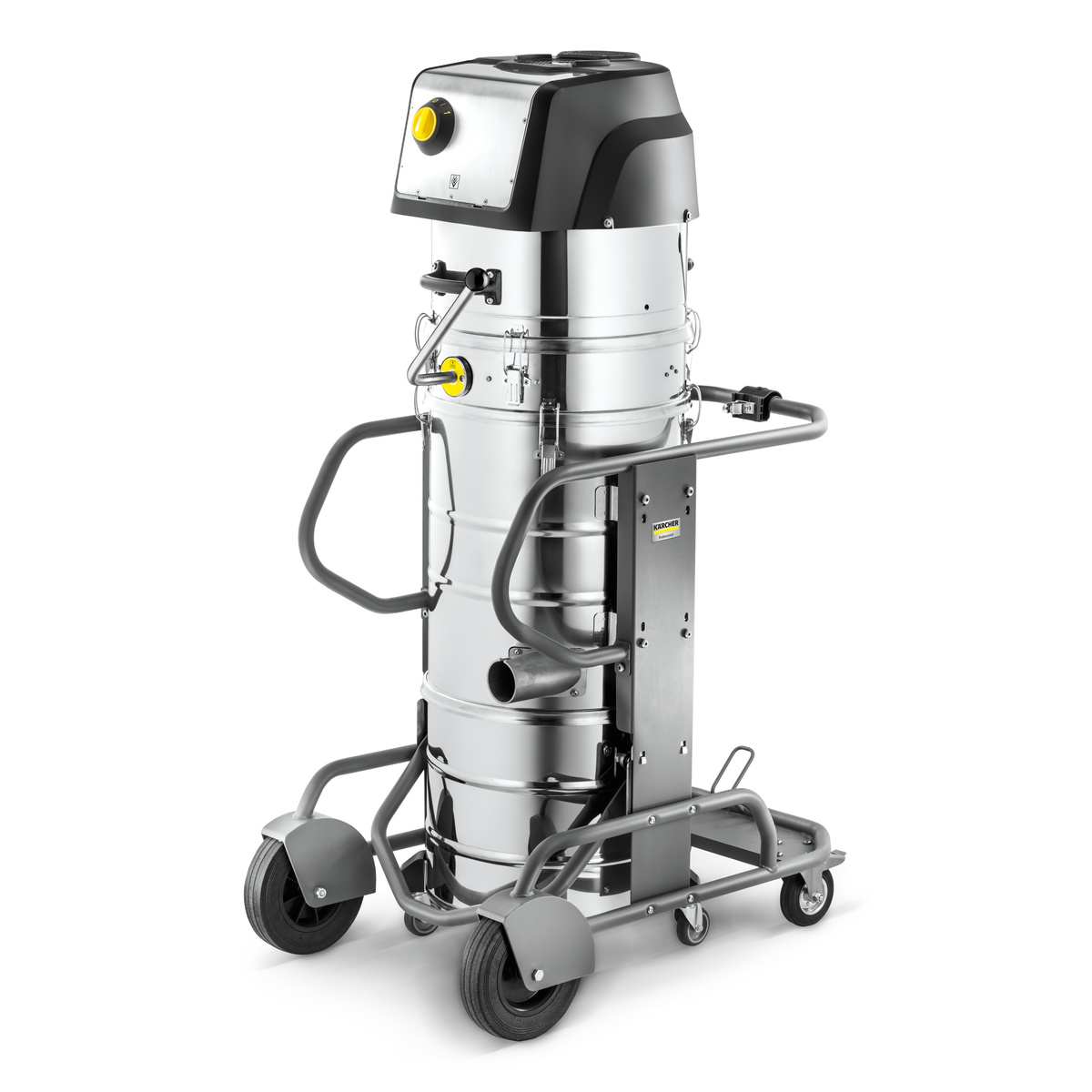

Specially developed for the removal of fine, hazardous and also explosive dusts: our middle-class industrial vacuum cleaner IVM 60/30 M Z22 impresses with its durable side channel blower and three-phase operation for continuous use in industry and, if requested, also around the clock.
The robust machine, with resistant steel housing and acid-resistant stainless steel body and container, has a large star filter in dust class M and also complies with the requirements for work in ATEX Zone 22.

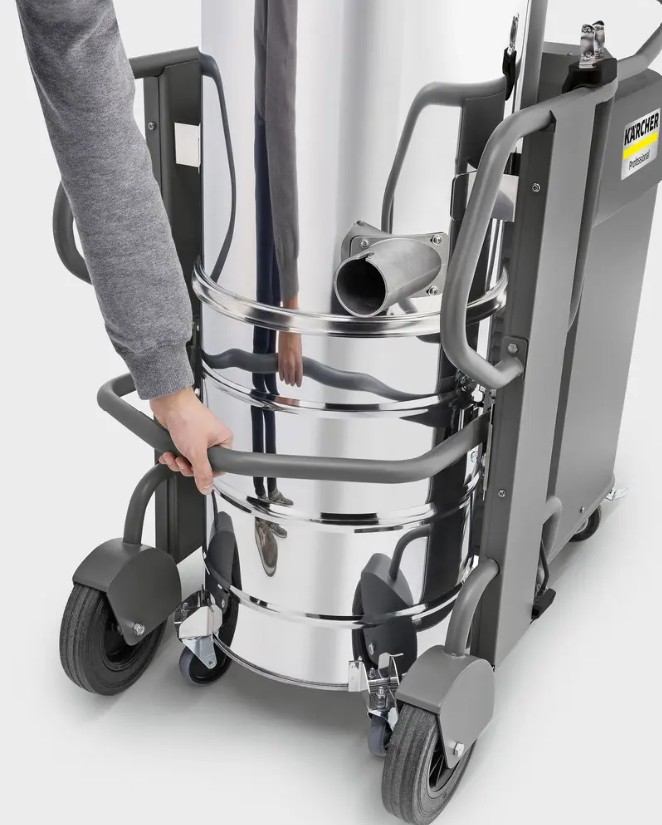

The vacuum cleaner is also certified according to 2014/34/EU. Large wheels guarantee maximum mobility, whereas the reliable, manual filter cleaning with transmission extends the filter service life, thus reducing the maintenance effort.
Certified for ATEX Zone 22
Explosion-proof industrial vacuum for safe vacuuming in ATEX Zone 22.
Dust class M
Complete device certified according to DIN EN 60335-2-69 for dust class M.
Wear-resistant side channel compressor
With 3 kW power and soft start for vacuuming large quantities of dust and solids. For strong suction power and service life of at least 20,000 hours. Suitable for multiple shift operation and/or with multiple suction points.

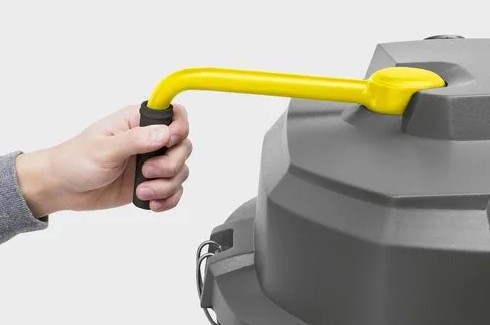

Manual IVM filter cleaning
- Effortless operation by means of an ergonomically placed lever if required.
- Extends the life of the filter and thus reduces the maintenance effort.
- Identical cleaning results, regardless of the amount of force used.
Equipped with extra-large star filter
- For safely vacuuming solids and dusts up to dust class M.
- Also suitable for large quantities of dust.
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Air flow (l/s/m³/h) | 68 / 244.8 |
| Vacuum (mbar/kPa) | 286 / 28.6 |
| Container content (l) | 60 |
| Rated input power (kW) | 3 |
| Vacuuming type | Electric |
| Nominal size | ID 70 |
| Accessory nominal size | ID 40 |
| Sound pressure level (dB(A)) | 79 |
| Main filter dust class | M |
| Filter area for main filter (m²) | 2 |
| Weight without accessories (kg) | 102 |
| Weight incl. packaging (kg) | 105.5 |
| Dimensions (L x W x H) (mm) | 1040 x 680 x 1840 |
