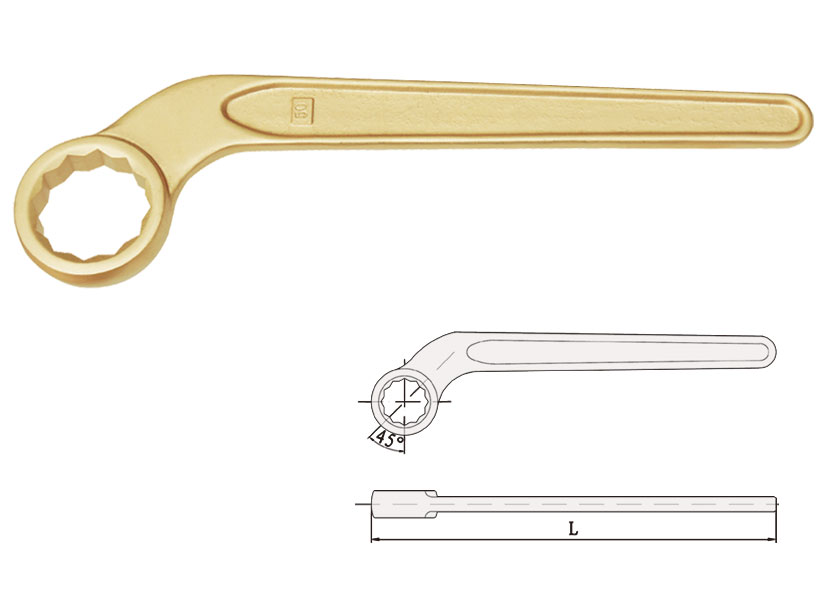

non sparking, Single end Bent ring wrench 10mm overall length 119mm
Non sparking
Used to tighten or loosen bolts and nuts. Suitable for use where space is limited, instead of straight single box wrench
Die forged - Single end bent ring wrench
| Number | S mm | L mm | Be-Cu g | Al-Br g | | 157-10 | 10 | 119 | 60 | 50 | | 157-12 | 12 | 151 | 85 | 75 | | 157-14 | 14 | 151 | 85 | 75 | | 157-16 | 16 | 174 | 150 | 130 | | 157-17 | 17 | 174 | 160 | 145 | | 157-19 | 19 | 207 | 195 | 190 | | 157-22 | 22 | 207 | 205 | 180 | | 157-24 | 24 | 250 | 330 | 295 | | 157-27 | 27 | 250 | 315 | 275 | | 157-30 | 30 | 295 | 480 | 430 | | 157-32 | 32 | 295 | 455 | 410 | | 157-34 | 34 | 307 | 650 | 580 | | 157-36 | 36 | 307 | 650 | 580 | | 157-38 | 38 | 340 | 830 | 740 | | 157-41 | 41 | 340 | 810 | 720 | | 157-46 | 46 | 370 | 1230 | 1100 | | 157-50 | 50 | 400 | 1400 | 1255 | | 157-55 | 55 | 430 | 1930 | 1720 | | 157-60 | 60 | 450 | 2100 | 1900 | | 157-65 | 65 | 470 | 2360 | 2135 | | 157-70 | 70 | 490 | 3080 | 2800 | | 157-75 | 75 | 510 | 3600 | 3250 | | 157-80 | 80 | 530 | 4460 | 4030 |
|
