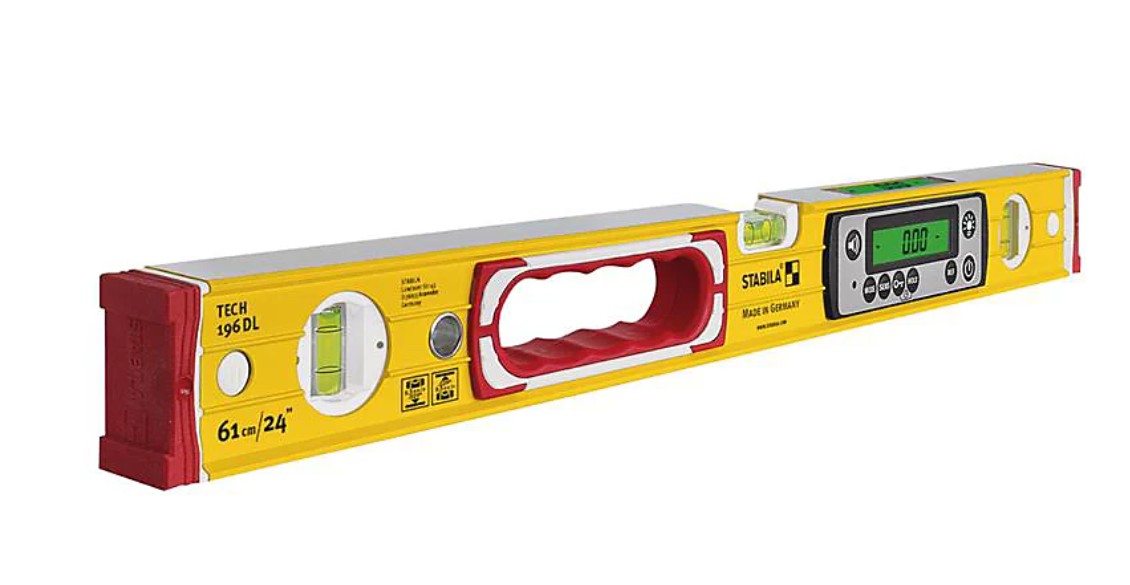

TECH 196 DL digital spirit level

PART NUMBER : STB19829

IN STOCK

£180.00

ex VAT

£216.00

inc UK VAT

Water, dirt and vibrations – tools must be able to withstand a lot. With the digital spirit level TECH 196 DL, you are perfectly equipped for harsh everyday conditions on site.

ULTRA-PROTECT ensures it can easily be cleaned under water and the highly accurate electronic module does not need to be recalibrated after being dropped or following temperature fluctuations.

This quality product 'Made in Germany' comes with user-friendly features to make every measuring task easier: two digital displays illuminated at the touch of a button, acoustic guidance and numerous display modes. State-of-the-art technology ensures you can work efficiently.

Product advantages

Electronic spirit level with two digital displays for the instantaneous measurement of inclinations and slopes.
ULTRA-PROTECT: Optimum protection against dust and water as per IP 67 – the spirit level can temporarily be submerged in water.
Optimum readability: Two digital displays that can be illuminated at the touch of a button.
Acoustic guidance: Align components quickly without having to look at the spirit level – with two different audible signals.
CAL-FREE: Calibration of the electronic system is not necessary during daily use even if the product is dropped or following temperature fluctuations.
Digital display rotates in reverse position.
REF-MODE: Accept, save and transfer an angle measurement to other components.
KEY-LOCK: Keypad lock to protect against accidental inputs.
Display modes: °, %, mm/m, in/ft – decimal and as fraction.
Long operating time: Up to 400 hours.
Includes bag for safe transport.

Application examples

Especially suitable for taking exact measurements in carpentry, joinery, kitchen installation, stair installation and civil engineering.
Ideal for architects to check completed work, e.g. for checking the slope of a balcony.
Perfect tool for use in gardening and landscaping work – for example when laying a garden path on a slope.

Technical data

Measurement accuracy in normal position
0.50 mm/m
Measurement accuracy in reverse position
0.50 mm/m
Accuracy with electronic inclination measurement at 0° and 90° +/-
0.05°
Accuracy with electronic inclination measurement at 1° to 89° +/-
0.10°
Measuring modes
°, %, mm/m, inch/ft
Number of measuring surfaces
2
End caps
Removable, shock-absorbing, slip-stopper
Profile
Aluminium rectangular profile with reinforcing ribs
Operating life
400 h
Protection class
IP 67
Battery type
AA

Product Manual:
tech196dl_manual_en.pdf

You Tube Guide
