Features

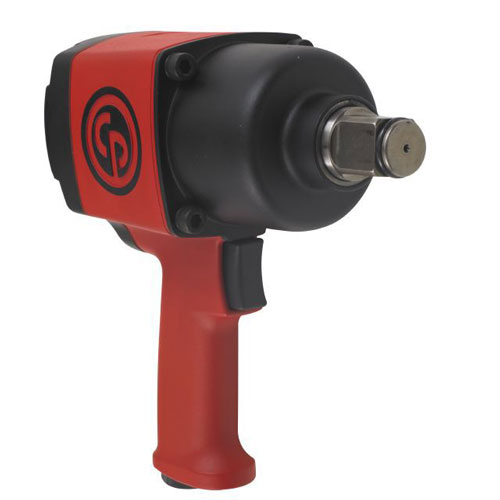

1" impact wrench with extension pinned drive
Short and narrow side-to-center for easy access
Robust Steel Clutch housing
Powerful Twin hammer clutch: 1,200 ft.lbs (1,630 Nm)
Combined power regulator with forward/reverse
Stainless steel attachment point with tool balance, rope access, secondary retention points
Supplied in IP67 case with easy audit foam complete with the following sockets;
| 1'' Drive 40mm std |
| 1'' Drive 41mm std |
| 1'' Drive 46mm std |
| 1'' Drive 50mm std |
| 1'' Drive 55mm std |
| 1'' Drive 60mm std |
| 1'' Drive 65mm std |
Pin push tool for use with socktry equipment
Impact wrench specification
Metric Imperial
Actual air consumption 14.2 l/s 30 cfm
Air inlet thread size 3/8 "
Blows per minute 900
Bolt size M27 mm
Box dimensions 224*90*232 mm
Clutch type Twin Hammer
Free speed 6300 rpm
Handle type Pistol
Length 227.5 mm 8.8 "
Maximum Torque (reverse) 1630 Nm 1200 ft.lbs
Min. hose size 13 mm 1/2 "
Net weight 5.6 kg 12.3 lb
Power/weight ratio 291.1 Nm/kg 97.6 ft.lb/lb
Side to center 41 mm 1.6 "
Socket retainer Ring
Sound Power 107 db(A)
Sound pressure 96 db(A)
Square drive 1 "
Vibration 9.4 m/s²
Vibration uncertainty (K) 1.3 m/s²
Vibration-ISO ISO-28927-2
Working Torque Range (fwd) 350 - 1290 Nm 260 - 950 ft.lbs
